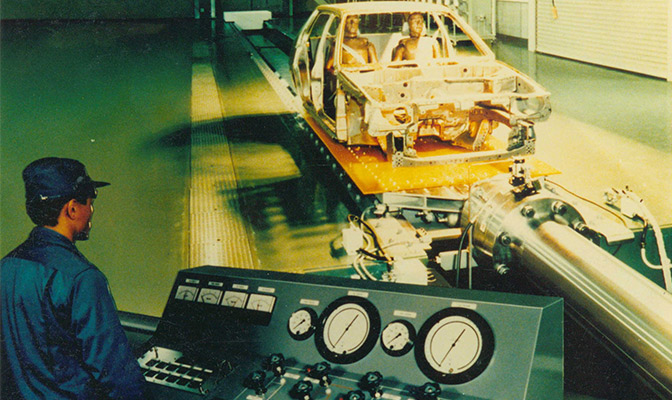

Impact Sled

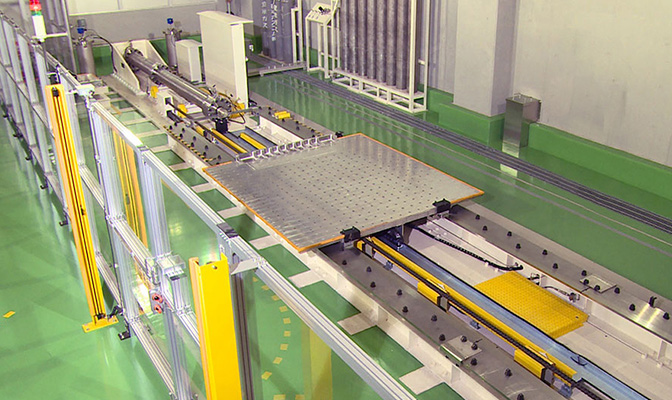

Mainly used machine for impact safety testing. Endure over 50 years of use, and it is still used even now. In recent years it has also been applied to battery impact test etc.
Product Specifications
| Applicable laws |
FMVSS 202・207・208 |
| Capacity |
| Thrust force |
： |
700KN（70000kgf） |
| Maximum load weight |
： |
2000kg |
| Acceleration |
： |
35G when 1000kg loading |
|
| Sled |
| Size |
： |
1200mm×4000mm |
| Weight |
： |
800kg |
|
| Rail length |
22.5m |
| Launch type |
High pressure, piston type |
| Power source |
AC200V、3φ、37kｗ |
| Collateral equipment |
High pressure compressor 15Kw 2 Units |
| Sister machine |
High pressure type 7.5"、9"、18"、Low pressure type 24" |
